Three Layers 200W Benchtop Fume Extractor F6002, Double Arms Metal Body Machine
Features:
1. Metal body structure, strong and durable;
2. Noise reduction design, quiet operation;
3. Triple-filter design ensures thorough purification;
4. High-quality alloy fan achieves great suction power.
5. It achieves powerful suction and quiet operation
6. Brushless motor ensures low noise , stable performance , and long product life
7. Triple-filter design , The Pre-Filter and Main Filter can be replaced separately to prolong the filter's life time and cut down the cost .
8.Built-in air cycling filter system avoids dispatching the cool/hot air to outside.
9.Easy to install and no need to lay pipelines
10. The airflow is freely adjustable according to different working environments

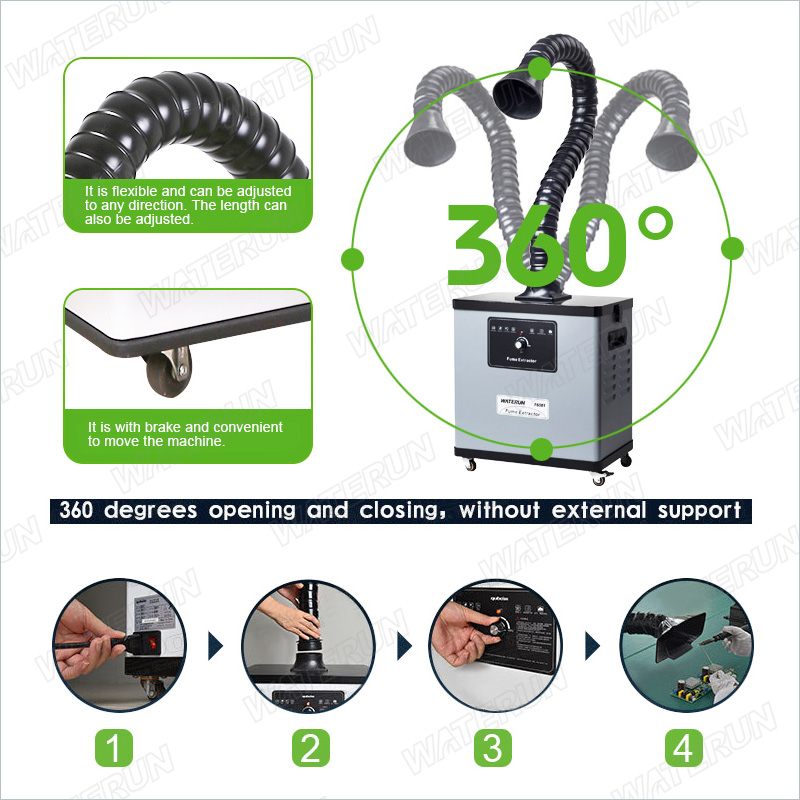

11. Ducts can be bent or lengthened as desired and maintain their shape after adjustment .
You can place them exactly where suction is needed.
Filters Combination
1st Layer: Pre- Filter Cotton
2ndLayer: Middle Filter
3rd Layer: Main Filter
| pre-filter contton | life time:1 -2 months |
| Middle Filter | life time : 3 months |
| Main Filter | life time : 6 months |

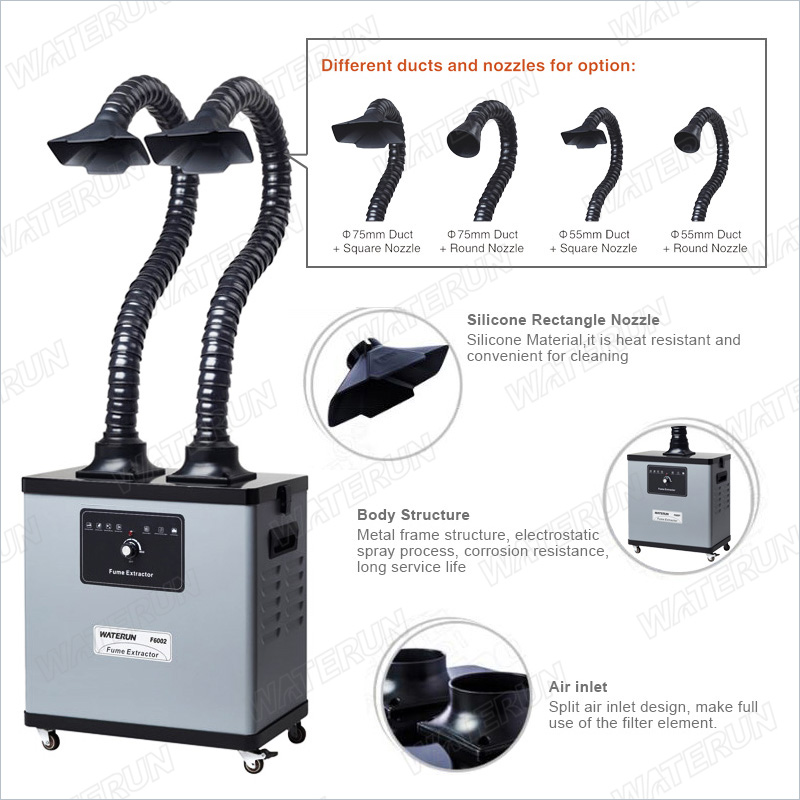

| Metal body F6002 | with 75mm Duct + Square Nozzle |
| Metal body F6002 | with 75mm Duct + Round Nozzle |
| Metal body F6002 | with 55mm Duct + Square Nozzle |
| Metal body F6002 | with 55mm Dcut + Round Nozzle |
Five Technical Superiorities
1. Precise control technology achieved by microcomputor chips
2. Brushless motor + no Hall technology
3. Overheat protection technolgy
4. Flange Equilibrium distribution technology
5. Clogged filter alarming technogy.
Parameter:
| Model | F6002 |
| Power | 200W |
| Filters | 3 layers |
| Systemic Flow | 2x150 m3/h |
| Air Velocity | 2X11 m/s |
| Noise | < 55dB |
| Dimensions (mm) | 425 x 250 x 410 |
| Weight | 14.5 kg |

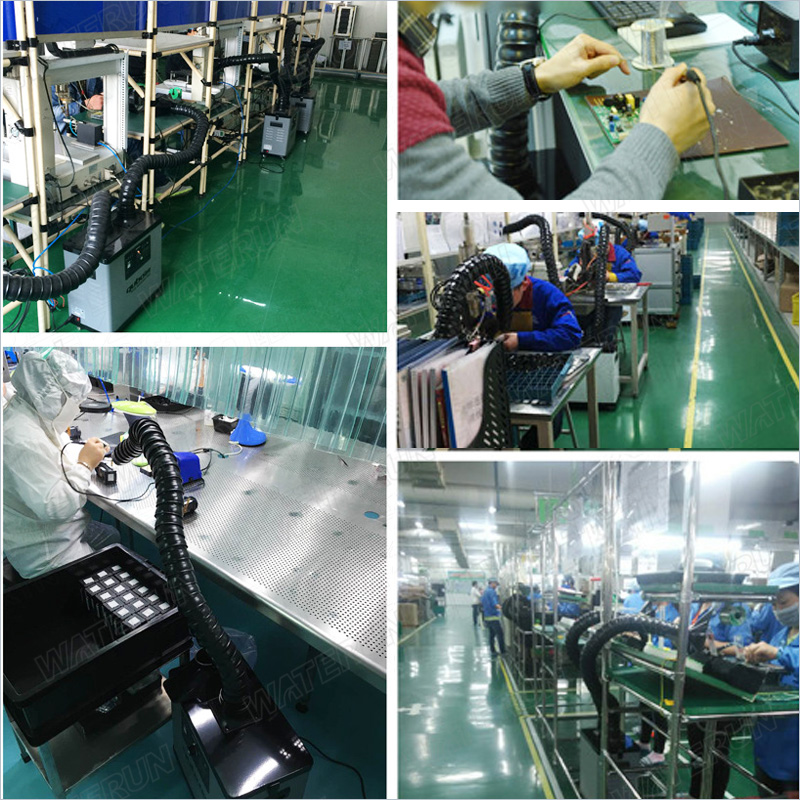

Application:
Soldering, Laser Marking & Carving, Moxibustion, Chemical Lab, Beauty Salon, etc.
Summary:
New Oxygen Fume Extractors are for cleaning of both particles and gases. It is designed to filter the harmful substances, such as hydrocarbon and cyanide, during the process of soldering, welding, laser marking & carving, 3D printing, moxibustion treatment, etx. It catches harmful smoke with freestanding ducts and adjustable air flow volume to significantly improve the working environment.
Pre-Filter Cotton:
It filters large particle of dust ,suspended particulates. bacterial viruses.
HEPA Filter ( High Efficlency Particulate Air Filter):
It filters more than 70 kinds of micro Pollutants, such as suspended virus, bacteria, fungus,
pollen. asbestos, etc. The filtering efficiency reaches 0.3μm 99.97%.
Active Carbon Filter:
It effectively filters the common toxic and hazardous gases, such as formaldehyde and benzene.
HEPA Filter:
Double HEPA Filtering can prevent the active carbon powder flowing with the air out of themachine.
It guarantees the perfect air cleanliness.
FAQ
1. Question : How about the warranty of the Fume Extractor ?
A : One year for the motor .
2. Question : How to change the filters ?
A : Yes , it is very easy to change the replacement filters .
Pre-filter the life time is 1-2 month
Middle filter the life time is 3 months
Main filter the life time is 6 months
3. Question : How about the effectiveness of the fume extractor ?
A : The filtering efficiency is 0.3um 99.97%
