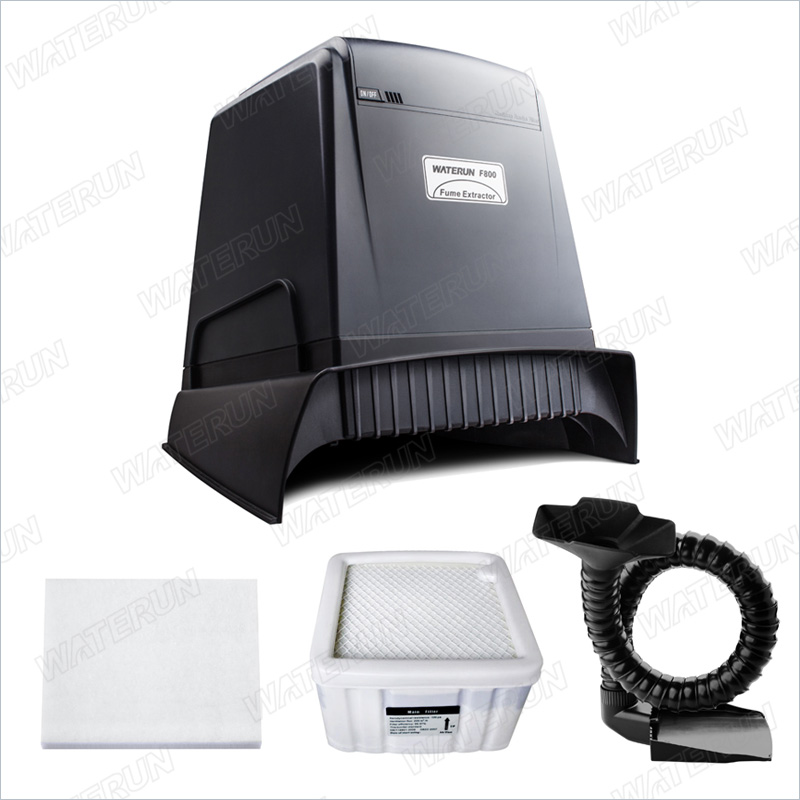

Portable Bench Top Fume Extractor Soldering Carbon Nano - Composite Filter
Major Application:
F800 Soldering Fume Extractor is main use for Manual solder , Laboratory solder etc.
Features:
1.Filter replace alarm: When filter gets saturated , the built-in buzzer will give sound and light alarm in time.
2. Multiple filtering, rapid filtering.
3.Filter Fume, Odor, Dust and PM2.5
4.Brushless motor ensures high speed with low noise, stable performance, long life time, and low power consumption;
Specifications:
| Model | F800 Soldering Fume Extractor |
| Filter | 2 filter |
| Feature | Filter replace alarm |
| Voltage | 110V/220V |
| Power | 35W |
| Ducts | 1 |
| Systemic Flow | 160m³/h |
| Filtering Efficiency | 0.3μm 99.97% |
| Noise Level | <50dB |
| Dimensions(mm) | 300x270x300 |
| Weight | 4.5kg |
a) Pre-Filter: the large-size pad filter can filter large particles of dust

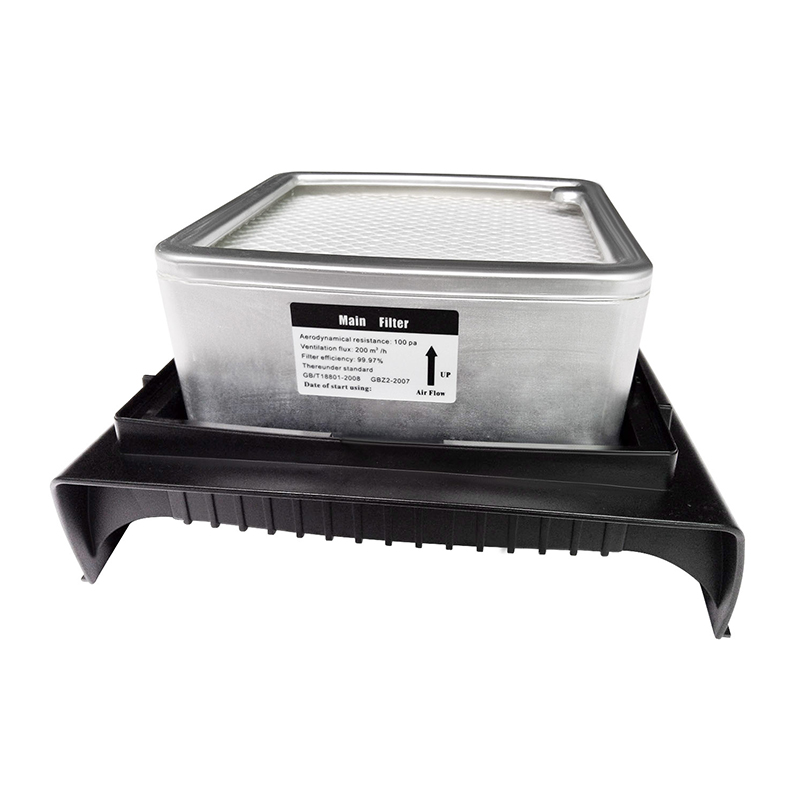

b) Main Filter: it includes HEPA (high efficiency) filter and gas filter.
Applications:
Waterun Technology Co.,Ltd manufacturing a variety of high quality air purification systems for filter the harmful substances. Our line of floor, bench top, mounted and portable units serve a variety of applications including welding, soldering, manufacturing, laboratory and pharmaceutical operations.Don’t despair if you don’t see your application listed below! Our modular product line can be configured in a number of different ways to address your specific requirements.Contact us today to find out the solutions!
| 1. | soldering fume extractor |
| 2. | welding, laser welding |
| 3. | laser cutting, laser engraving and marking |
| 4. | electronics Manufacturing |
| 5. | dust collector |
| 6. | medical, moxibustion, moxa-moxibustion |
| 7. | beauty fume extraction |
| 8. | Pharmaceutical and laboratories, chemical |
| 9. | 3D printing |
FQA:
1. How long need to to replace the filter
Calculate base one 8hours work
| Pre-Filter | 7-30 days |
| Main Filter | 3-6 month |
Company Profile
NEW OXYGEN Purification Technology Co., Ltd, established in 2005, is a China National Hi-Tech Enterprise, Located in Dongguan China, we have been focusing on the purification of harmful fumes for nearly 15 years, New Oxygen has become the leading manufacturer of Fume extractors in China. Our products are widely used for eliminating Solder Fumes, Laser Fumes, Welding Fumes, Beauty Salon Fumes, Medical Fumes, 3D Printing Fumes, etc.
