Electronic Soldering Fume Extractor Precise 600W High Efficiency
Specifications:
| Model Number: | F6000D |
| Filters Quantity: | pre-filter cartridge,PP filter 1pc,glass fiber filter 2pc, active carbon filter 3pcs |
| Voltage/Power: | 110-220V, 700W |
| Systemic Flow: | 620m3/h |
| Filtering Efficiency: | 0.3micron 99.97% |
| Length of Duct: | Dia.90mm x1.4m |
| Noise: | Less than 75db |
| Dimensions(mm) | 550 x 415 x 1300 |
| Net weight | 75kgs |
Application:
Dust and Power collection;
SMT Automatic Machines;
Electronic Soldering, Reflowing Soldering , Wave Soldering;
Laser Cutting, Laser Marking, Laser Engraving;
Electric Wedling, Argon Arc Welding, Plasma Cutting.
Features:
1, Seven Layer Filters: Pre-filter Cartridge, PP filter, Glass Fiber Filter, Active Carbon Filter. We can use different filter combination to meet different applications.
2, It achieves powerful suction and quiet operation;
3, Brushless motor ensures low noise, stable performance, and long product life;
4, Built-in Air cycling filter system avoids dispatching the cool/hot air to outside.

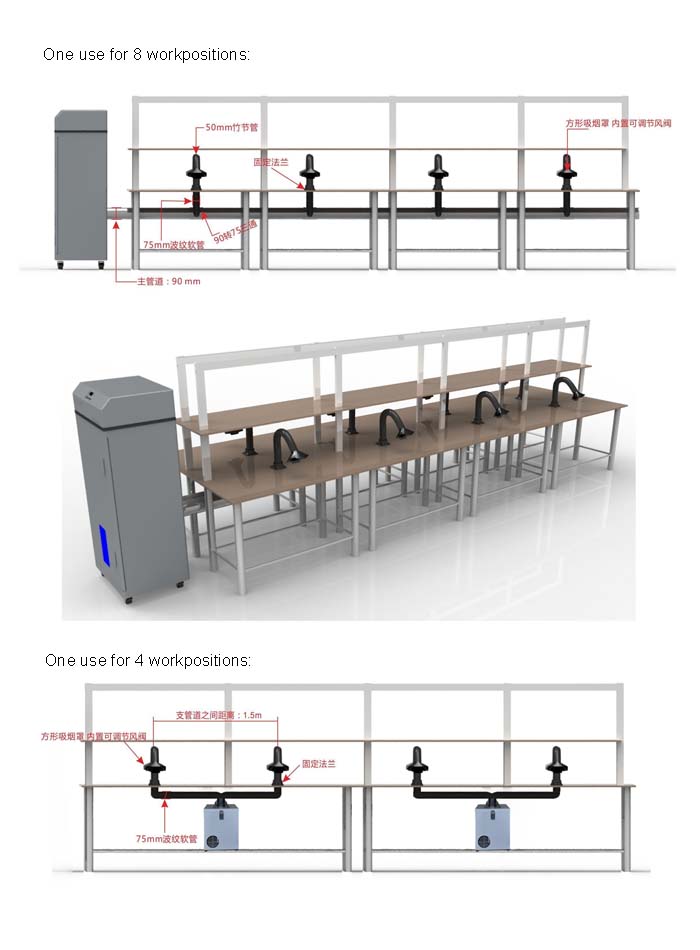

5, One for multi-workpositions. Maximum can work for 8 workpositions.
Five Technical Superiorities:
1. Precise Control Technology Achieved by microcomputer chips;
2. Brushless motor + no Hall technology;
3. Overheat protection technology;
4. Flange equilibrium distribution technology;
5. Clogged filter alarming technology.
Summary:
Waterun Fume Extractor is for cleaning of both particles and gases. It is designed to filter the harmful substances, such as hydrocarbon and cyanide, during the process of soldering, welding, laser marking & carving, 3D printing, moxibustion treatment, etc. It catches harmful smoke with freestanding ducts and adjustable air flow volume to significantly improve the working enviroment.
